USB Analog Input Module

$495.00

4-channel USB analog input for a Windows PC – 10K NTC thermistors, 4-20 mA transmitters or 0-5 V signal conditioners. Powered by the PC; ROI viewing and recording software (Lite edition) included.

Request a quote · Ranges and prices →

SKU: N/A Category:

ROI-USB · 4-channel USB analog input

Sensors straight to a Windows PC

The ROI-USB connects four sensor channels to a Windows PC over one USB cable – 10K NTC thermistors, 4-20 mA transmitters or 0-5 V signal conditioners. Sensor leads wire directly to pluggable connectors, the module is powered by the PC, and ROI viewing and recording software (Lite edition) is included, so you can watch, record and send readings to Excel the same day.

What’s included

  • ROI-USB 4-channel analog input module
  • USB cable
  • ROI viewing and recording software – Lite edition (download)
  • 4 mating plug-in connectors
  • Surface or DIN-rail mounting foot

Power for 4-20 mA transmitters and 0-5 V signal conditioners is not included – they need their own supply.

Choose the input type

Each ROI-USB is built for one input type on all four channels.

Version Connects Notes More
10K thermistor 4 × 10K NTC thermistors Two wires per sensor, no polarity; excitation from the module USB thermistor recording
4-20 mA 4 × 4-20 mA transmitters Transmitters powered by their own loop supply Transmitters
0-5 V 4 × 0-5 V signal conditioners Conditioners need a separate power supply Selection guide

Specifications

Channels
4 analog inputs, one input type per module
Inputs
10K NTC thermistor, 4-20 mA, or 0-5 V
Sample rate
10 samples per second, all four channels
Connection
USB to a Windows PC; module powered by the PC
Wiring
Stripped leads into pluggable connectors
Mounting
Surface or DIN rail
Size
4.510 × 1.258 × 3.948 in
Software
ROI viewing and recording software – Lite edition, included

Included software

  • Channel setup with labels, engineering units and scaling
  • Charts and digital meters for live readings
  • Data file recording with one click
  • Live readings into Excel as they are measured

About the Lite edition →

Need a custom screen, calculations or reports? We write custom software on quote. Already use DASYLab? A DASYLab ROI-USB thermistor kit is available – quote on request.

When you need more than four channels on one PC

Wireless

No cable runs

ROI-RFX wireless transmitters bring sensors to the PC over 2.4 GHz.

Wireless options →

Modbus RS-485

Many points, one cable

Transmitters and ROI-IOM I/O on a single RS-485 cable – 32 channels and more.

Multi-channel temperature →

Precision

8 channels per unit, up to 8 units

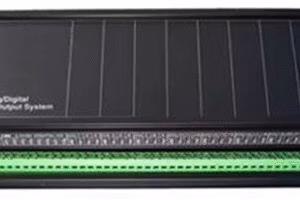

ROI-650 precision sensor I/O with the Pro edition of the viewing and recording software.

Pro edition →

ROI-USB – common questions

Does the ROI-USB need a power supply?

The module itself is powered by the PC’s USB port. 4-20 mA transmitters and 0-5 V signal conditioners need their own supply; thermistors are excited by the module.

What software comes with it?

ROI viewing and recording software, Lite edition, by download: channel setup, charts, digital meters, data file recording and live readings into Excel.

Can I mix thermistors and 4-20 mA on one module?

No – each ROI-USB is built for one input type on all four channels. Use one module per input type, or ask us about a mixed system.

How fast does it read?

10 samples per second on all four channels.

Need sensors on a PC this week?

Tell us the sensors, how many and what you want in Excel or a data file.

Questions? Contact us – we look forward to answering them.

Like us on Facebook  |  Follow us on X

Weight 16 oz
Dimensions 4.510 × 1.258 × 3.948 in
USB ADC

10Kohm, 5Vdc, 4-20mA
