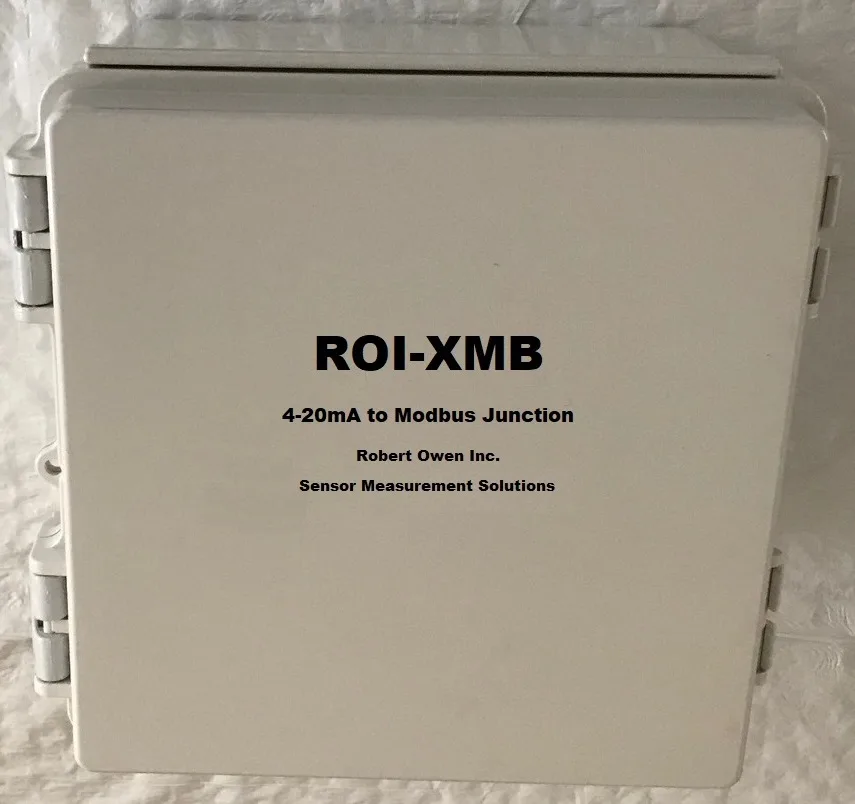

The ROI-XMB Modbus Junction adds 4-20mA to Modbus RS485 sensor transmitter monitoring to a PC, via a ready to install and wire enclosure. Monitor 4-20mA sensor transmitters with the ROI-XMB. Real time live data continually updates, adding new values to lists, charts, etc. PC connection through RS485 port, Windows10 compatible, Linux compatible.
-
MOUNTED IN ENCLOSURE WITH POWER & CONNECTORS
-
PC CONNECTED BY RS485
-
USEFUL FOR SENSOR TRANSMITTER MONITORING
-
SIMPLE TO USE MODBUS SOFTWARE AVAILABLE
-
USE WITH DESKTOP OR LAPTOP PC SYSTEMS
Specifications:
Input range: 4-20mA
Inputs: 4
Resolution: (15 BIT)
Supplies: via AC power
Connections: 4 inputs per connector plug in top entry connectors
Wiring: screw clamp stripped wire connection 30-12awg wire
4-20mA to Modbus RS485 sensor transmitter monitoring compatible Windows Data Acquisition Software available separately
An integrated subsystem using:
- D5252M 4 channel 4-20mA to RS485 Modbus analog to digital converter
- for multiple 4-20mA transmitter monitoring
- Terminal blocks
- 24Vdc power supply
- Hinged wall mount enclosure
Alternate versions are also available with:
- D1252M Single channel 4-20mA to RS485 Modbus analog to digital converter, plus digital IO
- for 4-20mA transmitter monitoring and local alarming
- D5332M 4 channel type T Thermocouple to RS485 Modbus analog to digital converter
- for multiple temperature sensor monitoring
- D1332M Single channel type T Thermocouple to RS485 Modbus analog to digital converter, plus digital IO
- for temperature monitoring and local alarming
- D1712M 15 Digital input to RS485 Modbus digital converter
- for monitoring of multiple Contacts
- and more…
